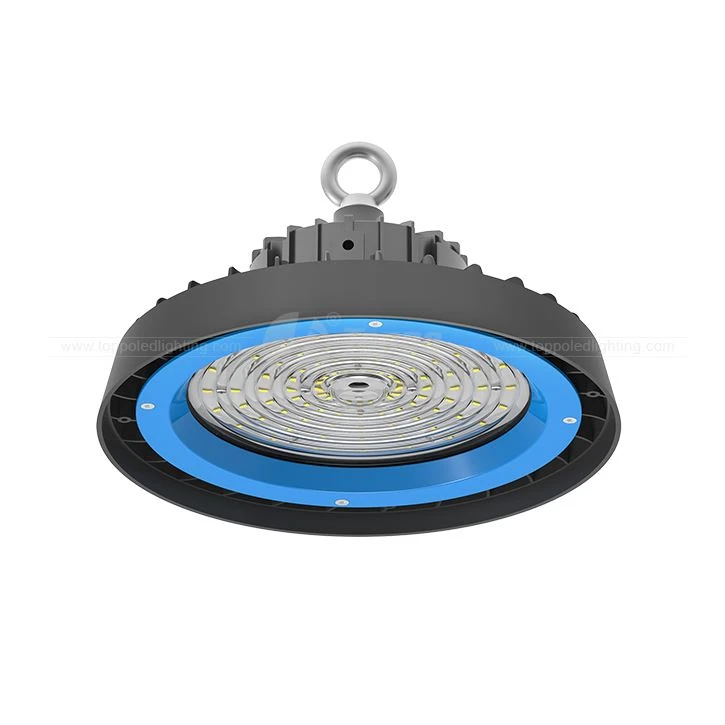

MatePro UFO Highbay Ripple Lens , Beamangle : 60°/90°/120°

MatePro UFO Highbay Ripple Lens , Beamangle : 60°/90°/120°

Ripple Lens version UFO highbay with high light efficiency up to 160 lm/W. The die-casting heat sink has super heat dissipation and the surface treatment adopts a powder spraying process, which has strong texture and corrosion resistance. The Ripple series is available in two sizes with diameter of 300mm and 350mm and three beam angle 60° /80°/105°, which is good for stock keeping and reducing storage space. The power are 100W, 150W, 200W and 240W.
And the light efficiency 140lm/W, 160lm/W are available according to different customers’ requirements, which can be used for replacing various traditional lamps.
Chat Now

Product Details

12

Features

3(001)

Honeycomb UGR<19

4(001)

UP-light(Optional)

5(001)

Unique Heatsink

Data sheet

D300

6

100W/150W
Φ300mm

D350

7

200W/240W
Φ350mm

Lumen Efficacy 140LM/W, 160LM/W
UGR <19
BeamAngle 60° / 80° / 105°
Protection Class IP65/IK10
Function 1-10V / MS / EMG / DALI / Daylight
CCT 3000K/4000K/5000K/6000K
Input AC100~277V/50Hz
Power factor >0.95
Color Index Ra>80

Dimension8(001)

Photometry Curve8(001)
