Features

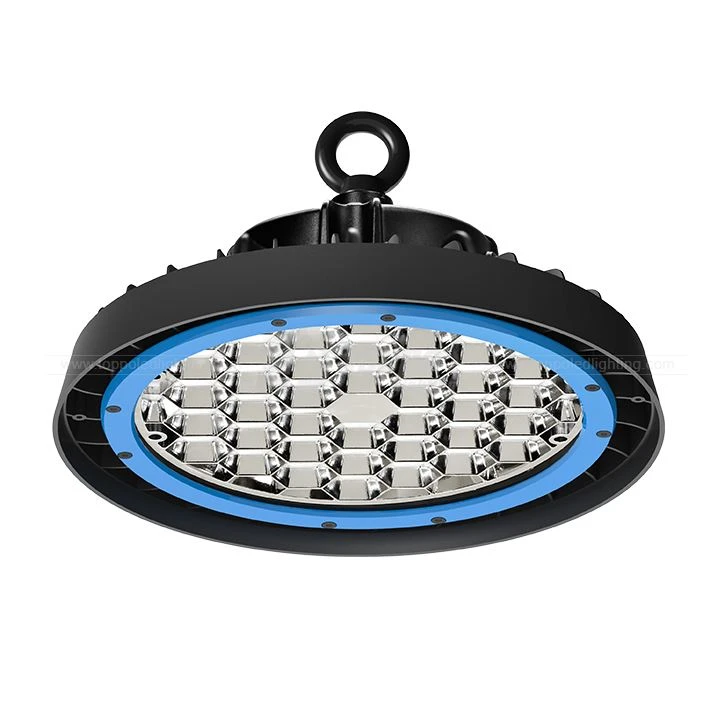

| Honeycomb UGR<19 | Unique Heatsink |
| Dimension | Photometry Curve |
Technical / Electrical Characters (at TA=25°C)
| Item | Symbol | Advance:140LM/W | Deluxe:160LM/W | ||||||
| D300 | D300 | D350 | D350 | D300 | D300 | D350 | D350 | ||
| Unit Power | W | 100W | 150W | 200W | 240W | 100W | 150W | 200W | 240W |
| Product Code | / | HB30-1AAN1 -UHN5M-001 | HB30-1BAN1 -UHN5M-001 | HB30-2AAN1 -UHN5M-001 | HB30-2BAN1 -UHN5M-001 | HB30-1ADN1 -UHN5M-001 | HB30-1BDN1 -UHN5M-001 | HB35-2ADN1 -UHN5M-001 | HB35-2BDN1 -UHN5M-001 |
| LED Type/Qty | SMD2835 | 444 | 444 | 636 | 636 | 444 | 444 | 636 | 636 |
| Lumen Efficacy | Lm/w | typ.140 | typ.140 | typ.140 | typ.140 | typ.160 | typ.160 | typ.160 | typ.160 |
| Luminous Flux | LM | typ.14000 | typ.21000 | typ.28000 | typ.36600 | typ.16000 | typ.24000 | typ.32000 | typ.38400 |
| Color Index | CRI(Ra) | Ra>70 | |||||||
| UGR | / | UGR<22 | |||||||
| Color Temperature | TC(K) | WW:3000K, NW:4000K, PW:5000K, CW:6000K | |||||||
| Beam Angle | Degree | 60°/90° | |||||||
| Dimming Function | / | 1-10V Dimming · Motion sensor ·Emergency ·DALI control ·Daylight sensor | |||||||
| LED current | mA | Constant 60mA | |||||||
| Input Voltage | V | AC100~277V/50Hz | |||||||
| Working Voltage | V | Constant DC36~60V | |||||||
| Housing material | / | Aluminum + PC | |||||||
| Protection Class | IP | IP65/IK10 | |||||||
| Temperature | °C | Operation:-15°C~+50°C Storage:-25°C~+55°C | |||||||
| Life Span | h | 50,000 hours | |||||||
Switching Cycle before Failure | / | >100,000 times | |||||||
| Warranty | Y | 5 years | |||||||
Hot Tags: • Options > Drivers: Meanwell, Philips,Sosen > Controls and Dimming ·Zigbee wireless control ·1-10V Dimming ·Motion sensor ·Emergency ·DALI control ·Daylight sensor > Driver shape: round or rectangular > Lumen efficacy:140Lm/w or 160Lm/w • Applications > Factories / Warehouses /Workshops > Exhibitions & showrooms > Barns and riding halls > High rooms and halls > Traditional lamp replacement
