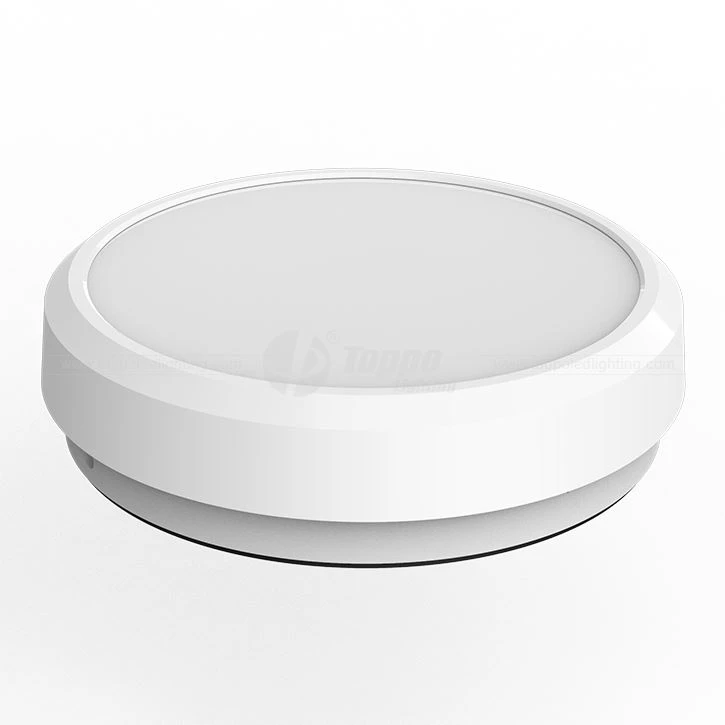

EVO Bulkheads
D240: UV resistant, IP65
| Features | Options |
◆IP65&UV resistant, plastic case | ▲Color: Single color Tri-color |
| ◆5 years warranty, EM battery:3 years | ▲Function: ON- OFF/Emergency/Microwave Sensor/Self EM |
| ◆1W/3H EM at 10% limen output | ▲Microwave sensor: 0% or 10% |
| ▲LED Driver: Tridonic/OSRAM/Lifud/BOKE | |
| ▲Package: Standard pack or color box |
Data Sheet
| Order Code | Function | Rated Power | Lumen Output | Lumen Efficiency | Ra/SDCM | AC Input | Power Fator | THD |
| BH24-10GTR-LNF1B-00 | STD/ON-OFF | 10W | 1000LM | 100LM/W | Ra>80 SDCM<5 | AC200-240V | PF>0.95 | <15% |
| BH24-10GTR-LNF2M-00 | STD+EM | 10W | 1000LM | 100LM/W | Ra>80 SDCM<5 | AC200-240V | PF>0.95 | <15% |
| BH24-10GTR-LNF3H-00 | STD+MS | 10W | 1000LM | 100LM/W | Ra>80 SDCM<5 | AC200-240V | PF>0.95 | <15% |
| BH24-10GTR-LNF4H-00 | STD+EM+MS | 10W | 1000LM | 100LM/W | Ra>80 SDCM<5 | AC200-240V | PF>0.95 | <15% |
| Dimensions | Beam angle |
Applications
| Toilet | Corridor |
▲Replacement for 2D fluorescent
▲Houses
▲Stairs/Corridors
▲Architectural lighting
