Overview

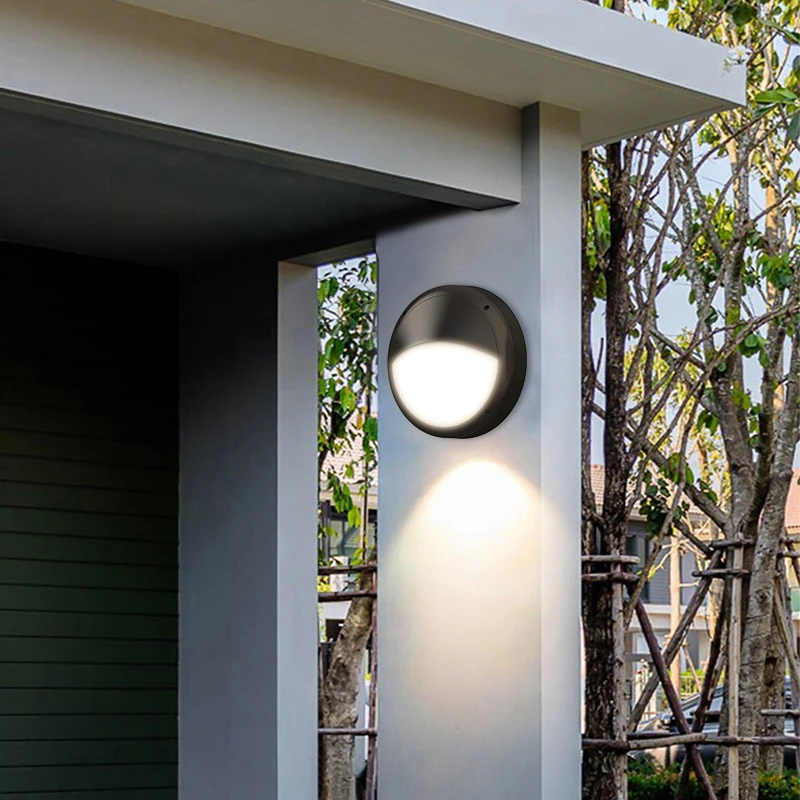

| Full Moon | Half Moon |
Features
● IP65 aluminum die-cast housing
● Multiple functions on EM/MS
● Best replacement for 2D CCFL
● 1W/3H EM at 10% lumen output
Dimensions
Specifications
Half-moon
| Order Code | Function |
Rated Power |
Lumen Output |
Lumen Efficiency |
Ra/ SDCM |
IP | AC Input |
Power Factor |
THD |
| BH22-10GTR-HNF1H-001 | STD/ON-OFF | 10W | 1000LM | 100LM/W |
Ra>80 SDCM<5 |
IP65 | AC200-240V 50/60 Hz | PF>0.95 | <15% |
| BH22-10GTR-HNF2H-0SC | STD+EMG | 10W | 1000LM | 100LM/W |
Ra>80 SDCM<5 |
IP65 | AC200-240V 50/60 Hz | PF>0.95 | <15% |
| BH22-10GTR-HNF3H-0SC | STD+MS | 10W | 1000LM | 100LM/W |
Ra>80 SDCM<5 |
IP65 | AC200-240V 50/60 Hz | PF>0.95 | <15% |
| BH22-10GTR-HNF4H-0SC | STD+EMG+MS | 10W | 1000LM | 100LM/W |
Ra>80 SDCM<5 |
IP65 | AC200-240V 50/60 Hz | PF>0.95 | <15% |
Full-moon
| Order Code | Function |
Rated Power |
Lumen Output |
Lumen Efficiency |
Ra/ SDCM |
IP | AC Input |
Power Factor |
THD |
| BH22-10GTR-FNF1H-001 | STD/ON-OFF | 10W | 1000LM | 100LM/W |
Ra>80 SDCM<5 |
IP65 | AC200-240V 50/60 Hz | PF>0.95 | <15% |
| BH22-10GTR-FNF2H-0SC | STD+EMG | 10W | 1000LM | 100LM/W |
Ra>80 SDCM<5 |
IP65 | AC200-240V 50/60 Hz | PF>0.95 | <15% |
| BH22-10GTR-FNF3H-0SC | STD+MS | 10W | 1000LM | 100LM/W |
Ra>80 SDCM<5 |
IP65 | AC200-240V 50/60 Hz | PF>0.95 | <15% |
| BH22-10GTR-HNF4H-0SC | STD+EMG+MS | 10W | 1000LM | 100LM/W |
Ra>80 SDCM<5 |
IP65 | AC200-240V 50/60 Hz | PF>0.95 | <15% |
Applications
| Stairs/High walls | Houses | Balcony |
