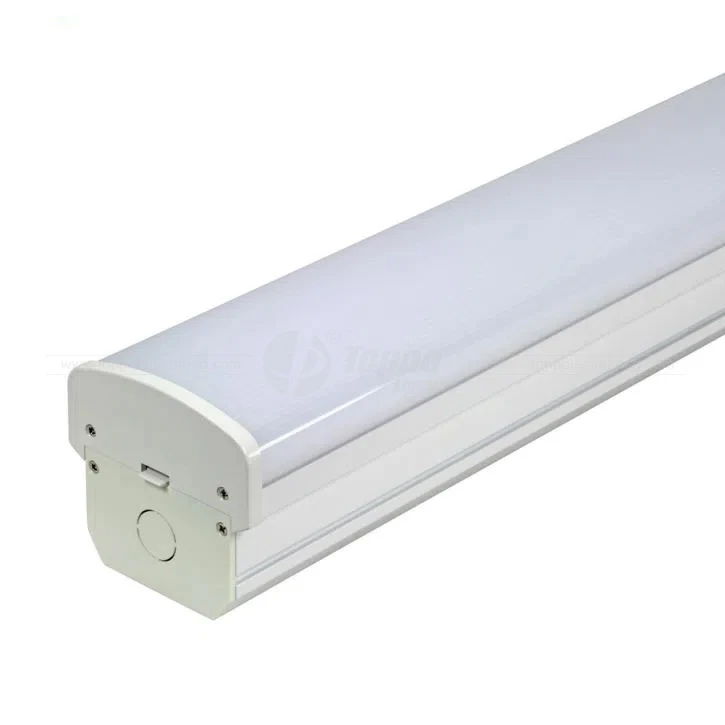

Suspended Flicker-free LED Single Batten

Suspended Flicker-free LED Single Batten

LED single battens can be slided out through the clip on the end,This makes the single batten easy installation and be widely used in factories,supermarket,public transport stations and so on.
Chat Now

Product Details

Suspended flicker-free LED single battenSuspended flicker-free LED single batten
            Key Features

                Clip on end cap for sliding opening

                Up to 60% energy savings

            Construction Features
                Patent sliding structure for easy installation

                White or silver paint finish

                Housing material: Aluminum + PC

                Surface monuting / suspension installation


                Replace fluorescent batten

                Factory, Warehouse, Supermarket, MTR station,Train station, Airport, etc

          Technical Features
       Input Voltage:

                 Philips driver: AC200-240V 50/60Hz

                 Toppo driver: AC90-277V/50-60Hz

               Operation Voltage: DC36-42V

               Total harmonic distortion: THD<15%

               Power Factor: PF>0.95

               Color Index: Ra>80

               Lumen maintenance @6000h: >80%

               Switching cycle before failure: 100,000

               IP Rating: IP40

               Life Span: 50,000 hours

               Warranty: 5 years

               Operation Temperature: -15°C~+50°C

               Storage Temperature: -25°C~+55°C


Suspended flicker-free LED single batten

            Why choose us?

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.


  1.How to explain “Flux/luminous Flux “?

  Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.


  2.Why we use the high power LED ?

  A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.


  3.How to explain “illuminance“?

  The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.


  4.What’s efficacy about the light ?

  The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w). important is IP ?

   Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.

Product Code/TP-BTS2D1-22-E0TP-BTS4D1-32-E0TP-BTS5D1-40-E0TP-BTS5D1-55-E0TP-BTS6D1-65-E0
Rated PowerW1832405565
LED Typ/QtySMD3825132192240364442
Luminous FluxLMtyp.2650-2850typ.3850-4150typ.4800-5200typ6500-7000typ.7800-8400
Luminous EfficacyLM/Wtyp.120-130
Color IndexRaRa>80
Color TemperatureCCT(K)WW:3000K NW:4000K PW: 5000K CW:6000K
Lumen maintance%>80%
AC Input VoltageVAC100-277V
Power FactorPFPF>0.95
Switching Cycle before   FailureTimes100000
Life Span Hours50000 hours
WarrantyYears5 years
Operation Temperature-15℃~+50℃
Storage Temperature-25℃~+55℃
