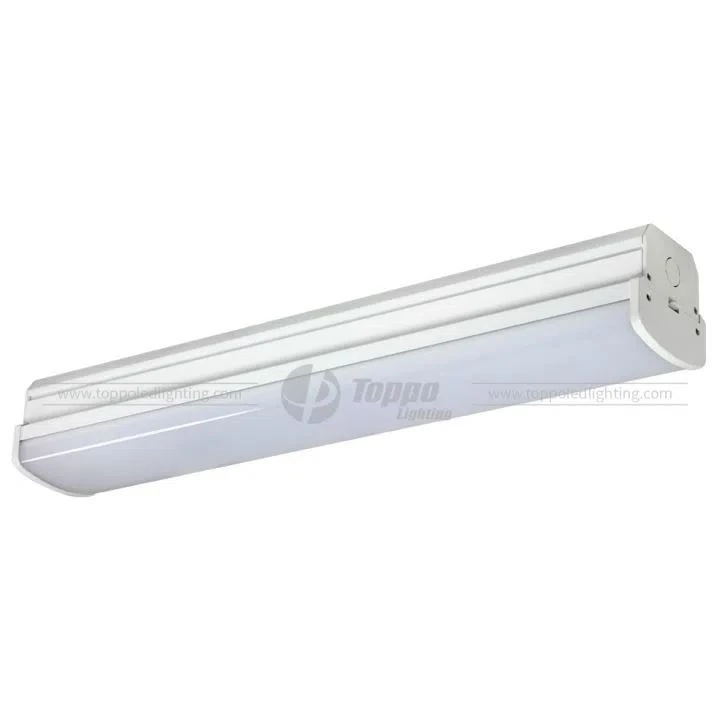

120DEG SMD2835 Internel Driver LED Single Batten

120DEG SMD2835 Internel Driver LED Single Batten

LED single batten lights are complete LED solutions designed to replace 2ft to 6ft T6 and T8 twins batten fittings in commercial and industrial applications.LED single batten lights are the best replacement for fluorescent twin batten fitting in commercial and industrial applications.
Chat Now

Product Details

120DEG SMD2835 internel driver led single batten120DEG SMD2835 internel driver led single batten

120DEG SMD2835 internel driver led single batten




120DEG SMD2835 internel driver led single batten

            Why choose us?

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.


120DEG SMD2835 internel driver led single batten






ItemSymbol2ft/60cm/22w4ft/120cm/32w5ft/150cm/540W5ft/150cm/55W6ft/180cm/65W
Product Code/TP-BTS2D1-22-E0TP-BTS4D1-32-E0TP-BTS5D1-40-E0TP-BTS5D1-55-E0TP-BTS6D1-65-E0
Rated PowerW1832405565
LED Typ/QtySMD3825132192240364442
Luminous FluxLMtyp.2650-2850typ.3850-4150typ.4800-5200typ6500-7000typ.7800-8400
Luminous EfficacyLM/Wtyp.120-130
Color IndexRaRa>80
Color TemperatureCCT(K)WW:3000K NW:4000K PW: 5000K CW:6000K
Lumen maintance%>80%
AC Input VoltageVAC100-277V
Power FactorPFPF>0.95
Flicker-free/Yes
Switching Cycle before   FailureTimes100000
Life Span Hours50000 hours
WarrantyYears5 years
Operation Temperature-15℃~+50℃
Storage Temperature-25℃~+55℃
