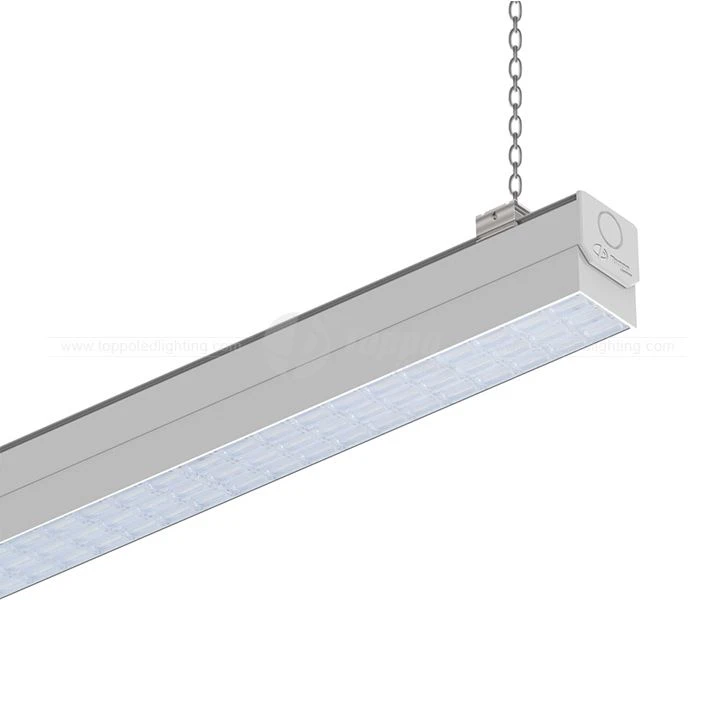

LED light module: Lens module
| Features: | Options: |
| · Max 200 meter multiple link | ▲Emitting color: |
| · 130&150LM/W output | Single Color/Tri-color |
| · Wattage adjustable | ▲Functions : |
| · Tool Free installation | · 1-10V dimming |
| · Owner design Lens | · DALI dimming |
| · 5 years warranty | · Micro-wave sensor |
| · PIR Sensor | |
| Applications | · 3H Emergency |
| · Commerical applications: | ▲Beam Angle : |
| Supermarkets , Shopmalls, Stations, Car parks, etc | 30/60/90/LR25 Degree |
| · Industrial applications: | ▲Installation: |
| Warehouse, Factories, ect | Surface mounting or Suspension |
EU Style
| Product Name | Model No. | Function | Lumen Output | Lumen Efficiency | Color Index | Color | AC Input | Power Fator |
0.6M/2ft/12W | TS-LM06- 12PN1-AL001 | ON-OFF/1-10V/DALI | 1550LM | 130LM/W | Ra>80 | Single or Tri-color | AC200-240V | PF>0.95 |
| 0.6M/2ft/24W | TS-LM06- 24RN1-AL001 | ON-OFF/1-10V/DALI | 3600LM | 150LM/W | Ra>80 | Single or Tri-color | AC200-240V | PF>0.95 |
| 1.2M/4ft/25W | TS-LM12- 25PN1-AL001 | ON-OFF/1-10V/DALI | 3250LM | 130LM/W | Ra>80 | Single or Tri-color | AC200-240V | PF>0.95 |
| 1.2M/4ft/50W | TS-LM12- 50RN1-AL001 | ON-OFF/1-10V/DALI | 7500LM | 150LM/W | Ra>80 | Single or Tri-color | AC200-240V | PF>0.95 |
| 1.5M/5ft/32W | TS-LM15- 32PN1-AL001 | ON-OFF/1-10V/DALI | 4150LM | 130LM/W | Ra>80 | Single or Tri-color | AC200-240V | PF>0.95 |
| 1.5M/5ft/64W | TS-LM15- 64RN1-AL001 | ON-OFF/1-10V/DALI | 9600LM | 150LM/W | Ra>80 | Single or Tri-color | AC200-240V | PF>0.95 |
| Dimensions | Beam angle |
Applications
| Office | Supermarket | Shopping Mall |
