Toppo Twins Batten 0-60 Degree Turnable Easy Installation

Toppo Twins Batten 0-60 Degree Turnable Easy Installation

Shenzhen Toppo lighting company incorporated surface-mount device(SMD) technology.Led twins batten are designed for applications which need the high LUX on different angle.It can be adjust max at 60 degree.
Chat Now

Product Details

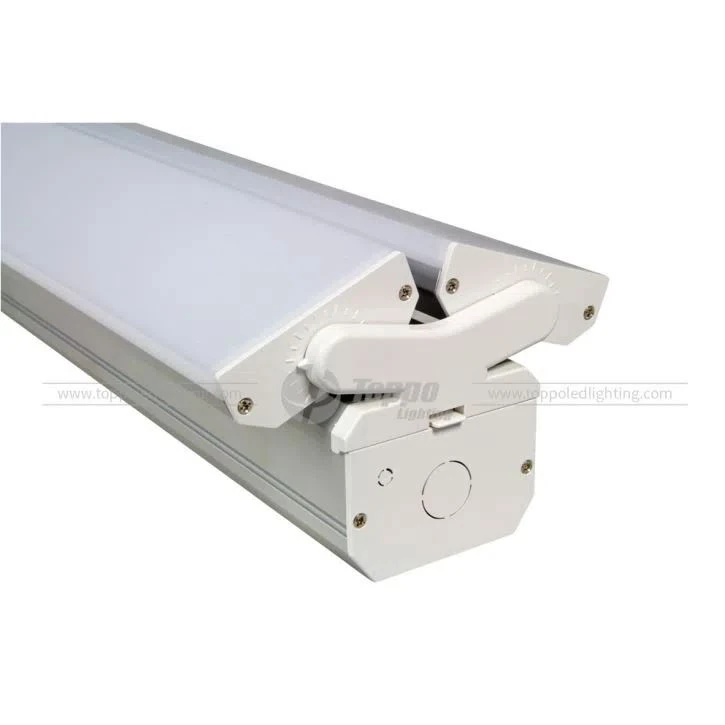

Toppo Twins Batten 0-60 degree turnable easy installation

Toppo Twins Batten 0-60 degree turnable easy installation.jpg
            Key Features



                0-60 degree rotatable angle

               Sliding structure for easy installation

                Philips Xitaninum driver for 5 years wrranty


            Construction Features

                 Turnable and sliding structure design

                 White or silver paint finish

                 1500px &3000px basic unit for infinite connection

                 Housing material: Aluminum + PC

                 Surface monuting / suspension installation


           Product Application


            Toppo led panel lights can be widely used in indoor situations,which  provide the optimized

            lighting solution for the commercial and industrial applications, such as : supermarkets,

            shopping malls, offices, conference rooms, warehouses, factories, stations, airports, car parks etc.

          Technical Features

               Input Voltage:Philips driver: AC200-240V 50/60Hz

               Toppo driver: AC90-277V/50-60Hz

               Operation Voltage: DC36-42V

               Total harmonic distortion: THD<15%

               Power Factor: PF>0.95

               Color Index: Ra>80

                Lumen maintenance @6000h: >80%

               Switching cycle before failure: 100,000

                IP Rating: IP40

                Life Span: 50,000 hours

                Warranty: 5 years

               Operation Temperature: -15°C~+50°C

                Storage Temperature: -25°C~+55°C


Toppo Twins Batten 0-60 degree turnable easy installation.jpg

Toppo Twins Batten 0-60 degree turnable easy installation.jpg


Toppo Twins Batten 0-60 degree turnable easy installation0.png

FAQ:

1. what’s the meaning of “Beam Angle “?

  The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.

2. Do you know “dali “?

  Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.

3. How to explain “illuminance“?

  The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.
