| Product Features |
> Highly energy efficient - up to 180 lm/w > Advanced cooling-fin structure for excellent heat dissipation > IP65 and IK10 for all industrial areas of application > Driver and housing separated by spacers > Newest generation of SMD2835 1W LED chips > Double-rail mounting solution for driver and other components > D-Mark tested for the use in paper production, wood processing etc. > No UV or IR and completely mercury free > L80/B10 @ 50.000h > 5 years warranty |
| Options |
> Drivers: Meanwell, Sosen, Shanpin > Beam angle: 120° > Controls and Dimming ·Zigbee wireless control ·1-10V Dimming ·Motion sensor ·Emergency ·DALI control ·Daylight sensor > Lumen efficiency: 160Lm/w or 180Lm/w > Installation: Suspended OR Surface mounted |
| Application |
> Factories and warehouses > High rooms and halls > Exhibition- & showrooms |
Dimension |
Beam Angle |
Top: 180LM/W
| Order Code | Product Name | Length | Rated Power | Lumen Output | Lumen Efficiency | Color Index | Beam Angle | AC Input | Power Factor | Flicker Free |

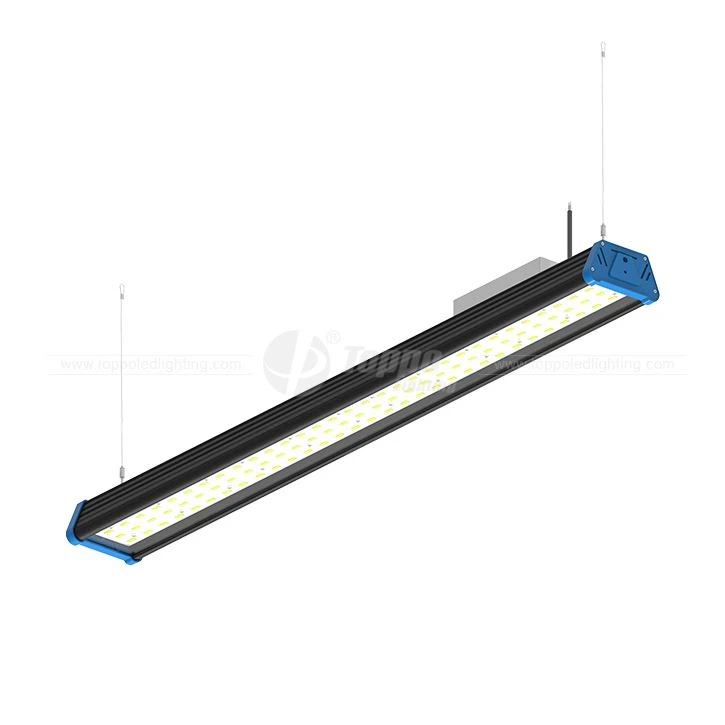

HB02-1ATN1- TGN5M-001 | Top 60CM/100W Glass T-Line Linear High Bay | 60CM | 100W | 18000LM | 180LM/W | Ra>70 | 60°/90° | AC 100-277V | >0.95 | Y |
HB03-1CTN1- TGN5M-001 | Top 90CM/120W Glass T-Line Linear High Bay | 90CM | 120W | 21600LM | 180LM/W | Ra>70 | 60°/90° | AC 100-277V | >0.95 | Y |
HB03-1BTN1- TGN5M-001 | Top 90CM/150W Glass T-Line Linear High Bay | 90CM | 150W | 27000LM | 180LM/W | Ra>70 | 60°/90° | AC 100-277V | >0.95 | Y |
HB04-2ATN1- TGN5M-001 | Top 120CM/200W Glass T-Line Linear High Bay | 120CM | 200W | 36000LM | 180LM/W | Ra>70 | 60°/90° | AC 100-277V | >0.95 | Y |
