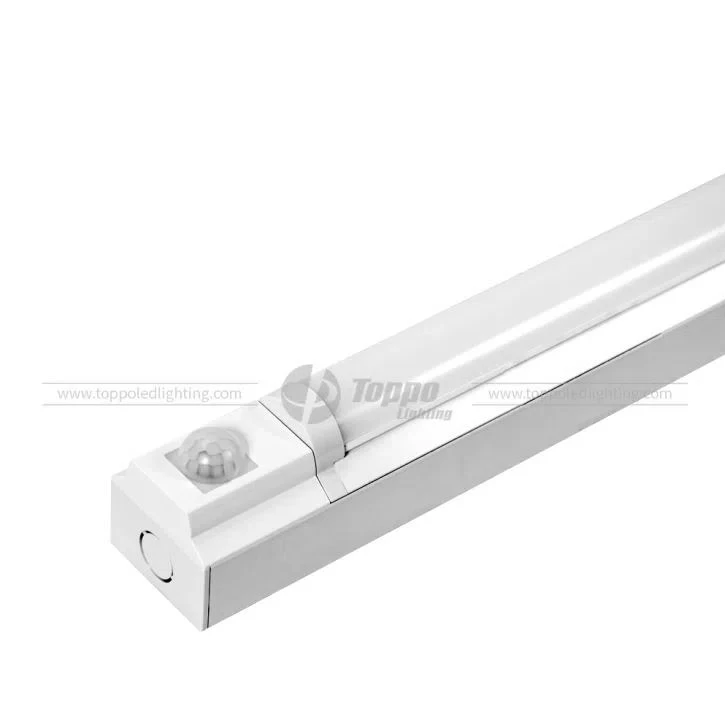

| Key Features |
| ? Slim aluminum case thinner than normal batten ? The popping clip make the top head out for installation ? Higher Lumen output than the fluorescent batten ? Infinite connection |
| Construction Features |
| ? Smart popping clip for installation ? Similar normal fluorescent batten with higher Lumen ? Easy installation on top head cover |
| Application |
| ? Replace fluorescent batten ? Industrial Lighting: Factory, Warehouse, etc ? Commercial Lighting: Office, Supermarket, etc. ? Public Lighting: Residence, Hospitals, School, MTR station, Train station, Airport, etc |
 |
|
|
 |
|
|
| Options |
> Case finish: White or silver > Lighting Cover: Clear or Frosted > Warm white: WW/3000K > Neutral white: NW/4000K > Pure white: PW/5000K > Cool white: CW/6000K |
| Technical Features |
? Input Voltage: AC90-277V 50/60Hz ? Operation Voltage: DC36-42V ? Total harmonic distortion: THD<10% ? Power Factor: PF>0.95 ? Color Index: Ra>80 ? Lumen maintenance @6000h: >80% ? Switching cycle before failure: 100,000 ? IP Rating: IP20 ? Life Span: 50,000 hours ? Warranty: 5 years ? Operation Temperature: -15°C~+50°C ? Storage Temperature: -25°C~+55°C |
