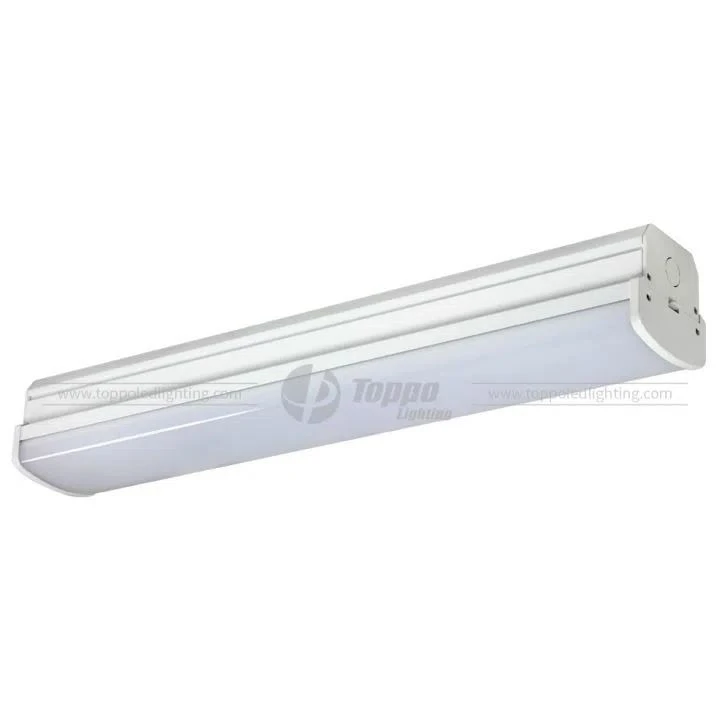

Surface Mounted SMD2835 22W LED Single Batten

Surface Mounted SMD2835 22W LED Single Batten

LED single batten have the various of functions on standard ON/OFF /simple set /DALI.and also have the high lumen efficacy.All of the these special points make the LED single batten lights hot selling.
Chat Now

Product Details

surface mounted SMD2835 22W LED single battensurface mounted SMD2835 22W LED single batten

surface mounted SMD2835 22W LED single batten




surface mounted SMD2835 22W LED single batten

            Why choose us?

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.






   1.what’s the meaning of “Beam Angle “?

      The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a

      high bay fitting will have a narrower beam.



  2.How do we explain “CRI” ?

     A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of    comparable colour temperature. The reference source has a CRI of 100.



  3.What’s colour temperature ?

     The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then

orange, and then white as the temperature increases.



  4.Do you know “dali “?

     Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.



ItemSymbol2ft/60cm/22w4ft/120cm/32w5ft/150cm/540W5ft/150cm/55W6ft/180cm/65W
Product Code/TP-BTS2D1-22-E0TP-BTS4D1-32-E0TP-BTS5D1-40-E0TP-BTS5D1-55-E0TP-BTS6D1-65-E0
Rated PowerW1832405565
LED Typ/QtySMD3825132192240364442
Luminous FluxLMtyp.2650-2850typ.3850-4150typ.4800-5200typ6500-7000typ.7800-8400
Luminous EfficacyLM/Wtyp.120-130
Color IndexRaRa>80
Color TemperatureCCT(K)WW:3000K NW:4000K PW: 5000K CW:6000K
Lumen maintance%>80%
AC Input VoltageVAC100-277V
Power FactorPFPF>0.95
Flicker-free/Yes
Switching Cycle before   FailureTimes100000
Life Span Hours50000 hours
WarrantyYears5 years
Operation Temperature-15℃~+50℃
Storage Temperature-25℃~+55℃
