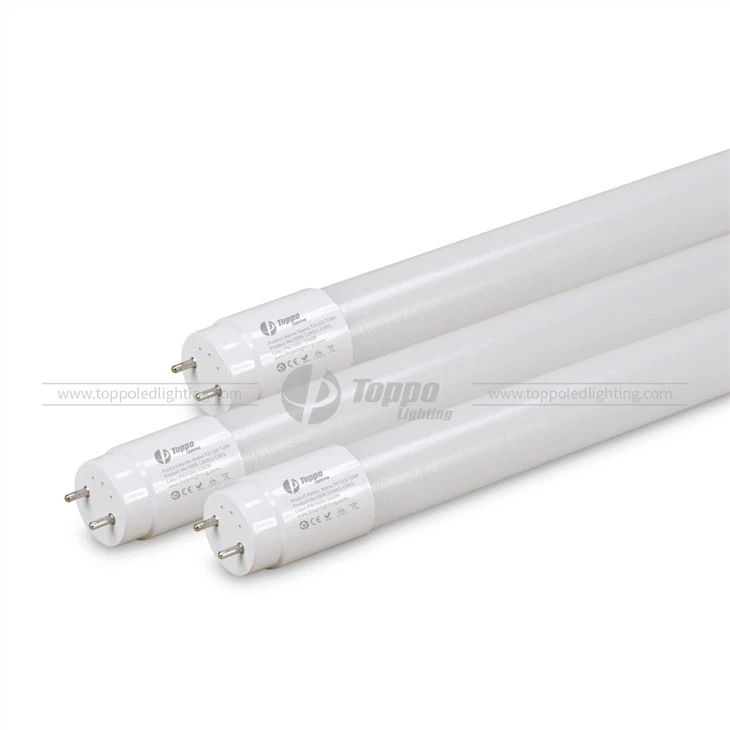

Nano LED Tube
Standard: 95-105LM/W Advance: 120-130LM/W Ritzy: 140-150LM/W
Features
| Features | Options |
◆ Various LM/W output version | ▲Lumen Efficiency: ◆ Standard: 100-110LM/W ◆ Advance: 130-140LM/W ◆ Ritzy: 150-160LM/W |
| ◆ Housing material: Nano case | |
| ◆ New LED Technology SMD2835 as the light source | |
| ◆ AC200-240V Input Voltage | |
| ◆ 3 years warranty |
Datasheet
Standard Version: 95-105LM/W
| Order Code | Product Name | Rated Power | Lumen Output | Lumen Efficiency | Color Index | AC Input | Flicker Free | Match |
| T802-10GN1-NMN2H-001 | 60CM-10W standard nano tube | 10W | 1000LM | 100LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
| T804-18GN1-NMN2H-001 | 120CM-18W standard nano tube | 18W | 1800LM | 100LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
| T805-24GN1-NMN2H-001 | 150CM-24W standard nano tube | 24W | 2400LM | 100LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
| T806-30GN1-NMN2H-001 | 180CM-30W standard nano tube | 30W | 3000LM | 100LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
Advance Version: 130-140LM/W
| Order Code | Product Name | Rated Power | Lumen Output | Lumen Efficiency | Color Index | AC Input | Flicker Free | Match |
| T802-10AN1-NMN2H-001 | 60CM-10W advance nano tube | 10W | 1300LM | 130LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
| T804-18AN1-NMN2H-001 | 120CM-18W advance nano tube | 18W | 2350LM | 130LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
| T805-24AN1-NMN2H-001 | 150CM-24W advance nano tube | 24W | 3100LM | 130LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
| T806-30AN1-NMN2H-001 | 180CM-30W advance nano tube | 30W | 3900LM | 130LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
Ritzy Version: 150-160LM/W
| Order Code | Product Name | Rated Power | Lumen Output | Lumen Efficiency | Color Index | AC Input | Flicker Free | Match |
| T802-10RN1-NMN2H-001 | 60CM-10W rizty nano tube | 10W | 1500LM | 150LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
| T804-18RN1-NMN2H-001 | 120CM-18W rizty nano tube | 18W | 2700LM | 150LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
| T805-24RN1-NMN2H-001 | 150CM-24W rizty nano tube | 24W | 3600LM | 150LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
| T806-30RN1-NMN2H-001 | 180CM-30W rizty nano tube | 30W | 4500LM | 150LM/W | Ra>80 | AC200-240V | Y | Inductive ballast |
Application
Library
Station
Supermarket
◆ Industrial Lighting: Factories, Warehouses
◆ Commercial Lighting: Offices, Supermarkets, Hotels, Exhibition Halls
◆ Public Lighting: Residences, Libraries, Hospitals, Schools, MTR Stations, Bus Stations, Train Stations, Airports
