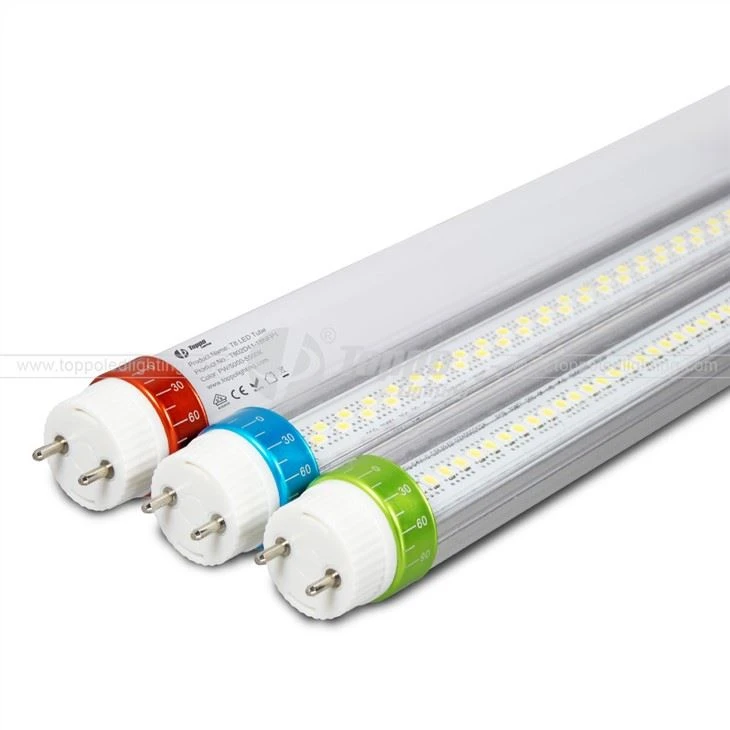

LED Replacement for Fluorescent Bulbs T8 LED Tube

LED Replacement for Fluorescent Bulbs T8 LED Tube

The VDE/TUV/CE/ROHS approved T8 LED tubes are the best refrofit units to replace the fluorescent tube.the 50000 hours life span and 5 years warranty make the T8 tube is a highly efficient and robust luminaire
Chat Now

Product Details

led replacement for fluorescent bulbs T8 LED tube



Product Details

High Lumen Efficacy VDE/UL/DLC certificate 5 years Warranty Top Quality LED Tube



Key Features
• 140-150 LM/W by latest LED technology
• High lumen SMD2835 as light source

• VDE/TUV/CE/RohS approval

• Up to 60% energy savings


Construction Features
• Patent designed heatsink system
• Various kind colorful cap ring
• 180 degree rotatable end cap with scale
• Socket / Diameter: Rotatable G13 / D26mm
• Housing Material: D aluminum shape + PC cover

Application
• Industrial Lighting: Factory, Warehouse, etc
• Commercial Lighting: Office, Supermarket,Hotel, Exhibition hall,etc.
• Public Lighting: Residence, Library, Hospitals,
School, MTR station, Train station, Bus station,
Airport, etc.



Technical Features
• Input Voltage: AC90-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD: <10%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C


Product Name

Product Code

Rated Power

Input Voltage

LED Type

LED Qty

Power Factor

Luminous Flux(LM)

Lumen Efficacy

CRI

Energy
 Efficiency
Class

60cm/10W

T802D21-10

10W

AC90-277V

SMD2835

104pcs

PF>0.90

1400-1500

typ.140-150

Ra>80

A++

120cm/18W

T802D41-18

18W

AC90-277V

SMD2835

208pcs

PF>0.95

2500-2700

typ.140-150

Ra>80

A++

120cm/20W

T802D41-20

20W

AC90-277V

SMD2835

221pcs

PF>0.95

2800-3000

typ.140-150

Ra>80

A++

150cm/22W

T802D51-22

22W

AC90-277V

SMD2835

286pcs

PF>0.95

3000-3300

typ.140-150

Ra>80

A++

150cm/25W

T802D51-25

25W

AC90-277V

SMD2835

312pcs

PF>0.95

3500-3750

typ.140-150

Ra>80

A++

150cm/30W

T802D51-30

30W

AC90-277V

SMD2835

364pcs

PF>0.95

4200-4500

typ.140-150

Ra>80

A++


Toppo Lighting is one of the leading high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube at competitive price with us. We can also offer you customized service.


FAQ

1.How long is the delivery time ?

Samples within 3 working days, bulk order is within 15-20 working days. If you are very

urgent, we will try our best to help you.


2.Can i have samples to test ?

Yes,sure. Welcome to order samples for evaluation before the bulk order.


3.what’s the payment methods you can accept ?

We can only use T/T. The bank information will be written in the PI. We can’t use Western Union and Paypal.


4.What’s your shipping method ?

UPS, DHL, Fedex, TNT or Shipping by Air or by sea
