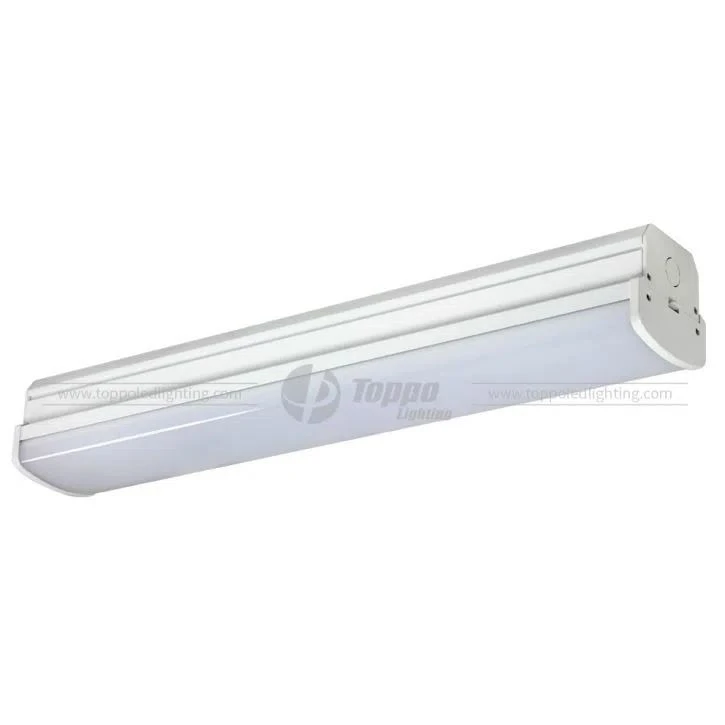

LED Light Fixtures 2ft 22w LED Single Batten

LED Light Fixtures 2ft 22w LED Single Batten

Not only the SAA/CE/ROHS approved LED batten lights have the various of functions on standard ON/OFF /Simple set /DALI.But also have the high lumen efficacy.All of these special points make the LED batten lights hot selling.The LED battens are held by a simple clip design ensuring a simple installation procedure.
Chat Now

Product Details

led light fixtures 2ft 22w LED single battenled light fixtures 2ft 22w LED single batten
            Key Features

                ? Sliding structure for easy installation

               ? Philips Xitaninum driver for 5 years wrranty .

            Construction Features
           ? Patent sliding structure for easy installation

               ? White or silver paint finish

               ? Housing material: Aluminum + PC

               ? Surface monuting / suspension installation


           ? Replace fluorescent batten

           ? Factory, Warehouse, Supermarket, MTR station,Train station, Airport, etc

          Technical Features
    ? Input Voltage:

             Philips driver: AC200-240V 50/60Hz

             Toppo driver: AC90-277V/50-60Hz

           ? Operation Voltage: DC36-42V

           ? Total harmonic distortion: THD<15%

           ? Power Factor: PF>0.95

           ? Color Index: Ra>80

           ? Lumen maintenance @6000h: >80%

           ? Switching cycle before failure: 100,000

           ? IP Rating: IP40

           ? Life Span: 50,000 hours

           ? Warranty: 5 years

           ? Operation Temperature: -15°C~+50°C

          ? Storage Temperature: -25°C~+55°C


led light fixtures 2ft 22w LED single batten

            Why choose us?

           1.what’s the meaning of “Beam Angle “?

              The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area whil               e a high bay fitting will have a narrower beam.


            2.How do we explain “CRI” ?

             A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference sour             ce of comparable colour temperature. The reference source has a CRI of 100.


            3.What’s colour temperature ?

            The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the te m              perature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows re              d, then orange, and then white as the temperature increases.


            4.Do you know “dali “?

             Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.


Product Code/TP-SLA4D1-18-E1TP-SLA5D1-30-E1TP-SLA6D1-30-E1
Rated PowerW183030
LED Typ/QtySMD3825156208324
Luminous FluxLMtyp.2150typ.3600typ.3600
Luminous EfficacyLM/Wtyp.120
Color IndexRaRa>80
Color TemperatureCCT(K)WW:3000K NW:4000K PW: 5000K CW:6000K
Lumen maintance%>80%
AC Input VoltageVAC100-277V
Power FactorPFPF>0.95
Switching Cycle before   FailureTimes100000
Life Span Hours50000 hours
WarrantyYears5 years
Operation Temperature-15℃~+50℃
Storage Temperature-25℃~+55℃
