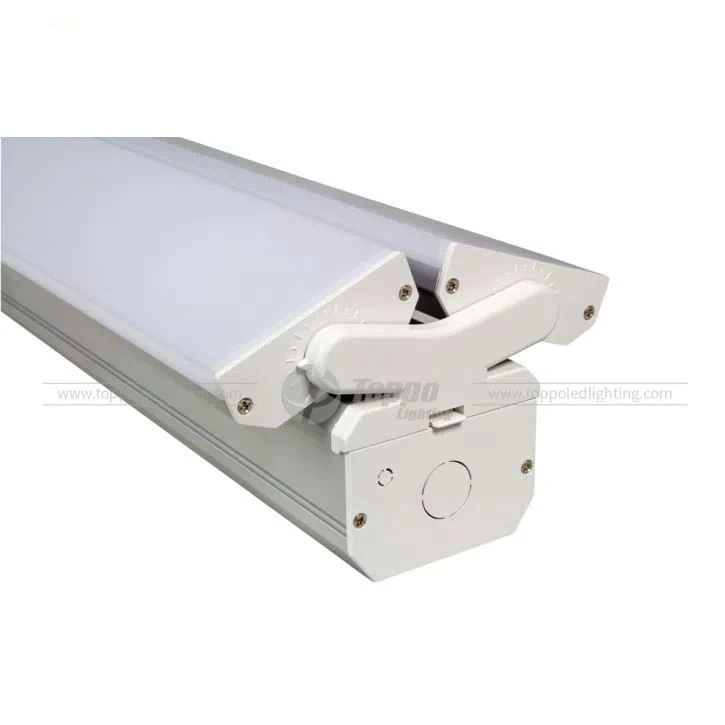

LED Ip20 Waterproof LED Twins Batten Fitting 60w

LED Ip20 Waterproof LED Twins Batten Fitting 60w

LED Twins batten lights are designed for applications which need the high LUX on different angle.Due to the high Lumen efficacy and best replacement of the fluorescent twins batten fitting.The twins batten is very popular in European market.
Chat Now

Product Details


led ip20 waterproof LED twins batten fitting 60w3.jpg
            Key Features


                  Turnable from 0-60 drgree

                  Best replacement for fiuorescent batten

                  Up to 60% energy savings

            Construction Features

                  Turnable and sliding structure design

                  White or silver paint finish

                  1500px &3000px basic unit for infinite connection

                 • Housing material: Aluminum + PC

                  Surface monuting / suspension installation


                 Replace fluorescent batten

                 Factory, Warehouse, Supermarket, MTR station,Train station, Airport, etc

          Technical Features

                 Input Voltage:Philips driver: AC200-240V 50/60Hz

                  Toppo driver: AC90-277V/50-60Hz

                Operation Voltage: DC36-42V

                 Total harmonic distortion: THD<15%

                 Power Factor: PF>0.95

                 Color Index: Ra>80

                 Lumen maintenance @6000h: >80%

                 Switching cycle before failure: 100,000

                 IP Rating: IP40

                 Life Span: 50,000 hours

                 Warranty: 5 years

                 Operation Temperature: -15°C~+50°C

                 Storage Temperature: -25°C~+55°C


led ip20 waterproof LED twins batten fitting 60w

led ip20 waterproof LED twins batten fitting 60w

            Why choose us?

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.



           1.How about your packaging ?

              Neutral box, customized box is welcomed.

           2.How long is the delivery time ?

             Samples within 3 working days, bulk order is within 15-20 working days. If you are very

             urgent, we will try our best to help you.

           3.Can i have samples to test ?

              Yes,sure. Welcome to order samples for evaluation before the bulk order.

           4.what’s the payment methods you can accept ?

              We can only use T/T. The bank information will be written in the PI. We can’t use Western Union and Paypal.

          5.What’s your shipping method ?

               UPS, DHL, Fedex, TNT or Shipping by Air or by sea

Product Code/TP-BTS2D1-22-E0TP-BTS4D1-32-E0TP-BTS5D1-40-E0TP-BTS5D1-55-E0TP-BTS6D1-65-E0
Rated PowerW1832405565
LED Typ/QtySMD3825132192240364442
Luminous FluxLMtyp.2650-2850typ.3850-4150typ.4800-5200typ6500-7000typ.7800-8400
Luminous EfficacyLM/Wtyp.120-130
Color IndexRaRa>80
Color TemperatureCCT(K)WW:3000K NW:4000K PW: 5000K CW:6000K
Lumen maintance%>80%
AC Input VoltageVAC100-277V
Power FactorPFPF>0.95
Switching Cycle before   FailureTimes100000
Life Span Hours50000 hours
WarrantyYears5 years
Operation Temperature-15℃~+50℃
Storage Temperature-25℃~+55℃
