Key Features |
Sliding structure for easy installation Philips Xitaninum driver for 5 years wrranty . |
Construction Features |

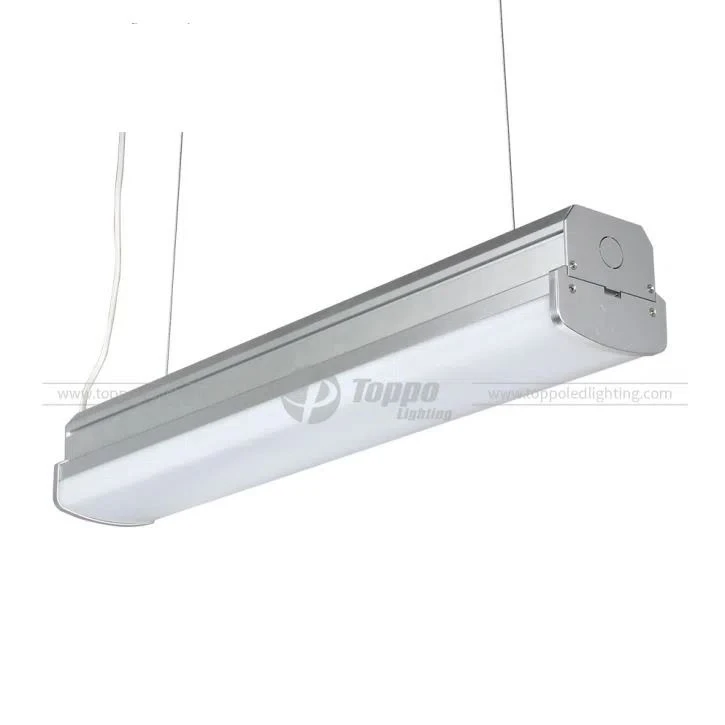

Patent sliding structure for easy installation White or silver paint finish Housing material: Aluminum + PC Surface monuting / suspension installation |
Application |
Replace fluorescent batten Factory, Warehouse, Supermarket, MTR station,Train station, Airport, etc |
Technical Features |
Input Voltage: Philips driver: AC200-240V 50/60Hz Toppo driver: AC90-277V/50-60Hz Operation Voltage: DC36-42V Total harmonic distortion: THD<15% Power Factor: PF>0.95 Color Index: Ra>80 Lumen maintenance @6000h: >80% Switching cycle before failure: 100,000 IP Rating: IP40 Life Span: 50,000 hours Warranty: 5 years Operation Temperature: -15°C~+50°C Storage Temperature: -25°C~+55°C |
![]() |
![]() |
Why choose us? |
Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service. |
1.MOQ ?
We don’t have MOQ. Welcome to try some samples from our company.
2.How about your packaging ?
Neutral box, customized box is welcomed.
3.How long is the delivery time ?
Samples within 3 working days, bulk order is within 15-20 working days. If you are very
urgent, we will try our best to help you.
4.Can i have samples to test ?
Yes,sure. Welcome to order samples for evaluation before the bulk order.
5.what’s the payment methods you can accept ?
We can only use T/T. The bank information will be written in the PI. We can’t use Western Union and Paypal.
6.What’s your shipping method ?
UPS, DHL, Fedex, TNT or Shipping by Air or by sea
Item | Symbol | 2ft/60cm/22w | 4ft/120cm/32w | 5ft/150cm/540W | 5ft/150cm/55W | 6ft/180cm/65W |
Product Code | / | TP-BTS2D1-22-E0 | TP-BTS4D1-32-E0 | TP-BTS5D1-40-E0 | TP-BTS5D1-55-E0 | TP-BTS6D1-65-E0 |
Rated Power | W | 18 | 32 | 40 | 55 | 65 |
LED Typ/Qty | SMD3825 | 132 | 192 | 240 | 364 | 442 |
Luminous Flux | LM | typ.2650-2850 | typ.3850-4150 | typ.4800-5200 | typ6500-7000 | typ.7800-8400 |
Luminous Efficacy | LM/W | typ.120-130 | ||||
Color Index | Ra | Ra>80 | ||||
Color Temperature | CCT(K) | WW:3000K NW:4000K PW: 5000K CW:6000K | ||||
Lumen maintance | % | >80% | ||||
AC Input Voltage | V | AC100-277V | ||||
Power Factor | PF | PF>0.95 | ||||
Flicker-free | / | Yes | ||||
Switching Cycle before Failure | Times | 100000 | ||||
Life Span | Hours | 50000 hours | ||||
Warranty | Years | 5 years | ||||
Operation Temperature | ℃ | -15℃~+50℃ | ||||
Storage Temperature | ℃ | -25℃~+55℃ |
