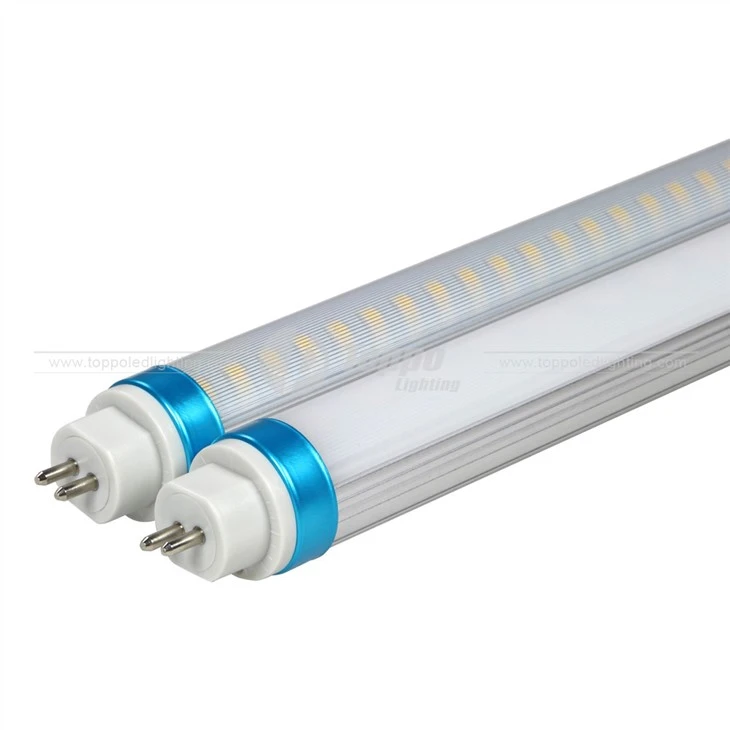

High lumen SMD2835 as light source LED Tube 150-160LM/W
Key Features
• 150-160 LM/W by latest LED technology
• High lumen SMD2835 as light source
• Up to 60% energu savings
Construction Features
• Patent designed heatsink system
• Various kind colorful cap ring
• 180 degree rotatable end cap with scale
• Socket / Diameter: Rotatable G13 / D26mm
• Housing Material: D aluminum shape + PC cover
Application
• Industrial Lighting: Factory, Warehouse, etc
• Commercial Lighting: Office, Supermarket,Hotel, Exhibition hall,etc.
• Public Lighting: Residence, Library, Hospitals,
School, MTR station, Train station, Bus station,
Airport, etc.
Technical Features
• Input Voltage: AC90-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD: <10%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C
Product Name | Product Code | Rated Power | Input Voltage | LED Type | LED Qty | Power Factor | Luminous Flux(LM) | Lumen Efficacy | CRI |
Energy |
60cm/10W | T802D21-10 | 10W | AC90-277V | SMD2835 | 104pcs | PF>0.90 | 1400-1500 | typ.140-150 | Ra>80 | A++ |
120cm/18W | T802D41-18 | 18W | AC90-277V | SMD2835 | 208pcs | PF>0.95 | 2500-2700 | typ.140-150 | Ra>80 | A++ |
120cm/20W | T802D41-20 | 20W | AC90-277V | SMD2835 | 221pcs | PF>0.95 | 2800-3000 | typ.140-150 | Ra>80 | A++ |
150cm/22W | T802D51-22 | 22W | AC90-277V | SMD2835 | 286pcs | PF>0.95 | 3000-3300 | typ.140-150 | Ra>80 | A++ |
150cm/25W | T802D51-25 | 25W | AC90-277V | SMD2835 | 312pcs | PF>0.95 | 3500-3750 | typ.140-150 | Ra>80 | A++ |
150cm/30W | T802D51-30 | 30W | AC90-277V | SMD2835 | 364pcs | PF>0.95 | 4200-4500 | typ.140-150 | Ra>80 | A++ |
Toppo Lighting is one of the leading high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube at competitive price with us. We can also offer you customized service.
FAQ
1.Could we can do OEM ?
We offer OEM services. We can print your own logo on product and packaging and customize packaging box.
2.How do we explain “CRI” ?
A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.
3.Where’s our company ?
TOPPO Lighting Company
The address is :D building of 6th Huanping Road,GaoQiao Zone of PingDi Town,LongGang district,Shenzhen 518116,P.R.C
Welcome to visit our company.
4.Do you know “dali “?
Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.
5.MOQ ?
We don’t have MOQ. Welcome to try some samples from our company.
