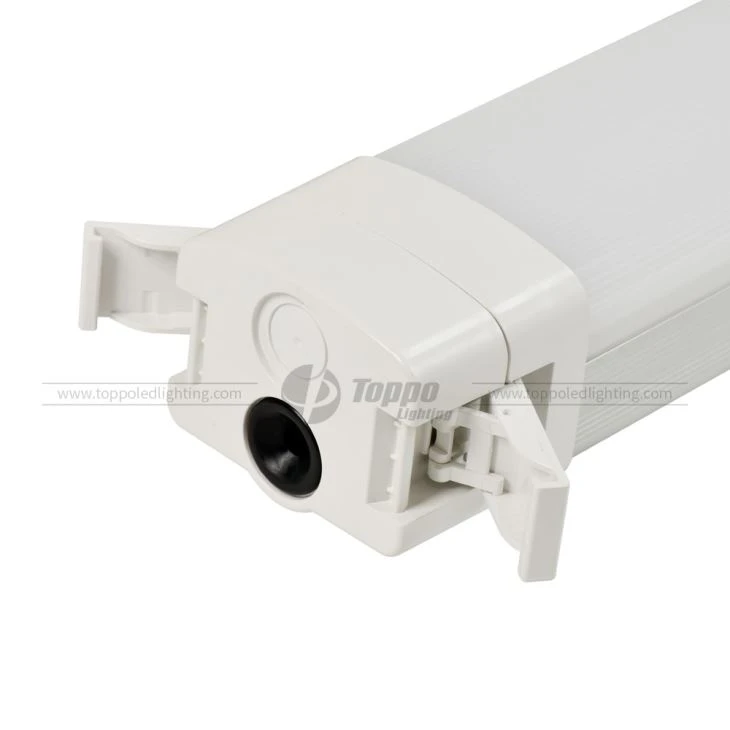

High Lumen with Mutiple Link Tri-proof Light

· Owner design clip end cap for easy installation

· 1-10V dimming with flicker free driver

· Compatible Dimmer : Lutron / LEVITON

· Single or Double wiring

· IP 65 /IK10 Approval

· Multiple Link with double wiring

· Patent aluminum case as heatsink

· 5 years warranty

· Single or Double wiring

· Color Index: Ra>80 or Ra>90

· Dimming : 1-10V or ON-OFF

· Lumen Efficacy : 100LM/W , 125LM/W ,140LM/W

· Replacement for fluorescent NCF

· Warehouses , Factories, Car parks , Sports facilities

· Sports facilities, Outdoor & Indoor Locations

· etc

Tri-proof : 60cm&120cm

Item

Symbol

L=60cm/2ft

L=120cm/4ft

Standard

Premium

Deluxe

Standard

Premium

Deluxe

Rated Power

W

22W

40W / 60W

LED Type/Qty

SMD2835

143pcs

234pcs

Lumen Efficacy

LM/W

typ.100

typ.125

typ.140

typ.100

typ.125

typ.140

Luminous Flux

LM

typ.2200

typ.2750

typ.3050

typ.4000/6000

typ.5000/7500

typ.5600/8400

LED Current

mA

Constant 50mA

Color Index

CRI(Ra)

Ra>80, R9>0

Color Temperature

TC(k)

Tri-color : 3000/5000k Mixed : 4000k

Beam Angle

Degree

120 degree

Dimming Function

/

ON-OFF/ 1-10V dimming

Power Factor

PF

PF>0.95

Input Voltage

V

AC200-240V / 50HZ

Housing Material

/

Alumium +PC

Starting Time

S

<0.55

Protection Class

IP

IP65/IK10

Lifespan

h

50,000 hours

Guarantee

/

5 years

Tri-proof : 150cm&240cm

Item

Symbol

L=150cm/5ft

L=240cm / 8ft

Standard

Premium

Deluxe

Standard

Premium

Deluxe

Rated Power

W

60W

100W

LED Type/Qty

SMD2835

325pcs

520pcs

Lumen Efficacy

LM/W

typ.100

typ.125

typ.140

typ.100

typ.125

typ.140

Luminous Flux

LM

typ.6000

typ.7500

typ.8400

typ.10000

typ.12500

typ.14000

LED Current

mA

Constant 50mA

Color Index

CRI(Ra)

Ra>80, R9>0

Color Temperature

TC(k)

Tri-color : 3000/5000k Mixed : 4000k

Beam Angle

Degree

120 degree

Dimming Function

/

ON-OFF/ 1-10V dimming

Power Factor

PF

PF>0.95

Input Voltage

V

AC200-240V / 50HZ

Housing Material

/

Alumium +PC

Starting Time

S

<0.55

Protection Class

IP

IP65/IK10

Lifespan

h

50,000 hours

Guarantee

/

5 years
