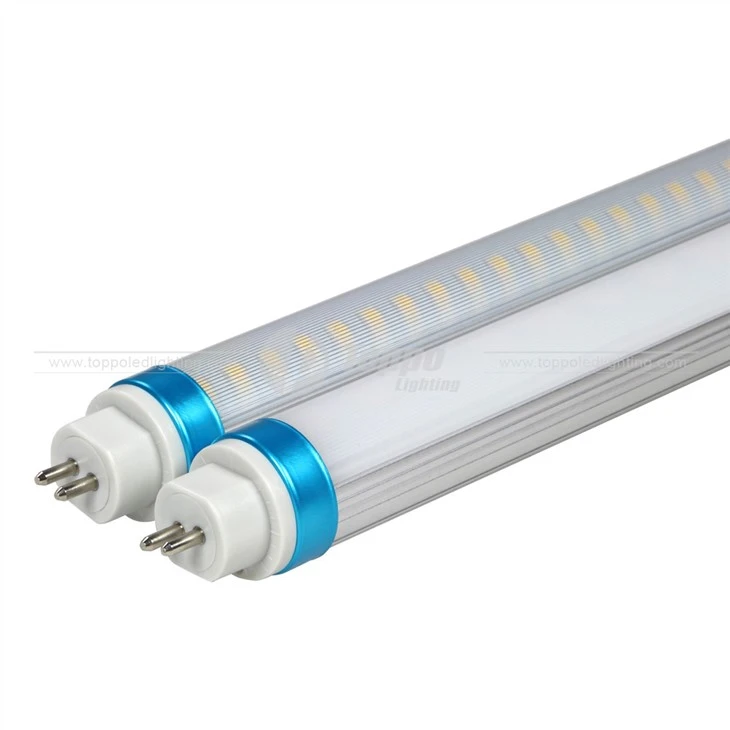

Energy Saving Easy Replace High Quality Highg Brigtness T6 LED Tube
Key Features
• Best replacement for T5 fluorescent
• AC90-277V inuput directly with G5 cap
• Rotatable end cap with scale
Construction Features
• Various kind colorful cap ring
• 180 degree rotatable end cap with scale
• Socket / Diameter: Rotatable G5 / D22mm
• Housing Material: Aluminum+PC
Application
• Industrial Lighting: Factory, Warehouse, etc
• Commercial Lighting: Office, Supermarket, Hotel, etc.
• Public Lighting: Residence, Library, Hospitals,
School, MTR station, Train station, Bus station,
Airport, etc.
Technical Features
• Input Voltage: AC90-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD: <10%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C
Product Name | Product Code | Rated Power | Input Voltage | LED Type | LED Qty | Power Factor | Luminous Flux(LM) | Lumen Efficacy | CRI | Energy |
60cm/10W | T806D21-10 | 10W | AC90-277V | SMD2835 | 72pcs | PF>0.90 | 1200-1300 | typ. 120-130 | Ra>80 | A+ |
120cm/18W | T806D41-18 | 18W | AC90-277V | SMD2835 | 144pcs | PF>0.95 | 2100-2300 | typ. 120-130 | Ra>80 | A+ |
150cm/22W | T806D51-22 | 22W | AC90-277V | SMD2835 | 180pcs | PF>0.95 | 2600-2800 | typ. 120-130 | Ra>80 | A+ |
150cm/25W | T806D51-25 | 25W | AC90-277V | SMD2835 | 192pcs | PF>0.95 | 3000-3300 | typ. 120-130 | Ra>80 | A+ |
150cm/30W | T806D51-30 | 30W | AC90-277V | SMD2835 | 216pcs | PF>0.95 | 3600-3900 | typ. 120-130 | Ra>80 | A+ |
Toppo Lighting is one of the leading energy saving easy replace high quality high brigtness t6 led tube manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest energy saving easy replace high quality high brigtness t6 led tube at competitive price with us. We can also offer you customized service.
