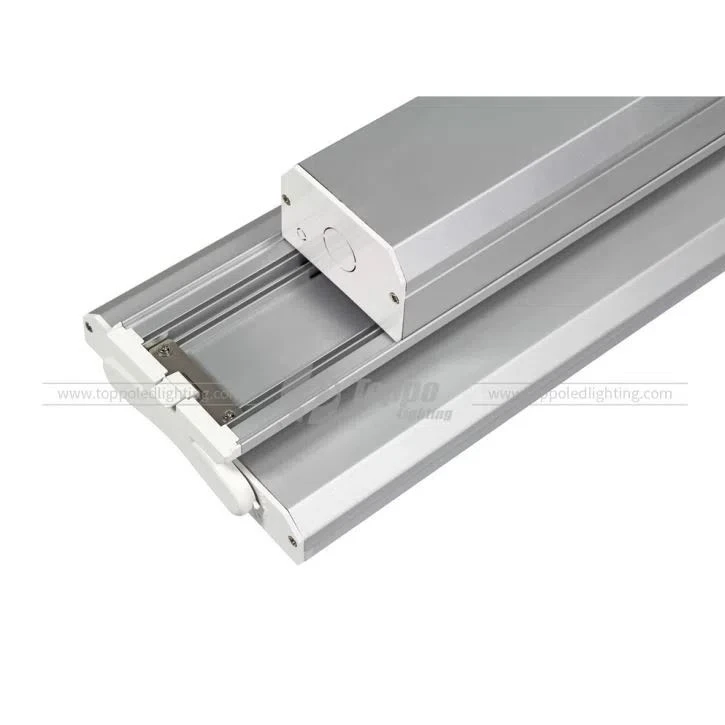

Back and Side Wiring LED 40w 120cm Twins Batten

Back and Side Wiring LED 40w 120cm Twins Batten

The twins battens have the various of functions on standard ON/OFF /Simple set /DALI / Zigbee,and also have the high lumen efficacy.All of these special points make the LED batten lights hot selling. Due to the high Lumen efficacy and best replacement of the fluorescent twins batten fitting.The twins batten is very popular in European market.
Chat Now

Product Details

Back and side wiring LED 40w 120cm twins batten
Back and side wiring LED 40w 120cm twins batten
            Key Features



                 0-60 degree rotatable angle

                 Sliding structure for easy installation

                 Philips Xitaninum driver for 5 years wrranty


            Construction Features

                  Turnable and sliding structure design

                   White or silver paint finish

                  1500px &3000px basic unit for infinite connection

                  Housing material: Aluminum + PC

                  Surface monuting / suspension installation


            Application

                 Replace fluorescent batten

                Factory, Warehouse, Supermarket, MTR station,Train station, Airport, etc


          Technical Features

                Input Voltage:Philips driver: AC200-240V 50/60Hz

                Toppo driver: AC90-277V/50-60Hz

                Operation Voltage: DC36-42V

                Total harmonic distortion: THD<15%

                Power Factor: PF>0.95

                Color Index: Ra>80

                Lumen maintenance @6000h: >80%

                Switching cycle before failure: 100,000

                IP Rating: IP40

                Life Span: 50,000 hours

                Warranty: 5 years

                Operation Temperature: -15°C~+50°C

                Storage Temperature: -25°C~+55°C




Back and side wiring LED 40w 120cm twins batten

Back and side wiring LED 40w 120cm twins batten

Back and side wiring LED 40w 120cm twins batten


Back and side wiring LED 40w 120cm twins batten
            Why choose us?

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.



             1.how important is IP ?

               Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and                      water by mechanical casing and electrical enclosures.



             2.What’s LED Chips ?

                The light producing semiconductor device that may or may not be incorporated into an LED.



             3.Could i tell you what’s LED driver ?

                An electronic circuit that converts input power into a current source -a source in which current ramains constant despite fluctuations in voltage                fluctuations ,overvoltages, and voltage spikes.



            4.What’s LGP(PMMA)?

               A key component to maximize the uniformity of light, to make the backlight slim and to reorient the line or dot light source such as LED to the                 plate light source.



           5.What’s Lumen?

             The international (SI) unit of luminous flux or quantity of light and equals the amount of light that is spread over a square foot of surface by one                  candle power when all parts of the surface are exactly one foot from the light source.


cSymbol2ft/60cm/32w4ft/120cm/40w4ft/120cm/60W5ft/150cm/60W
Product Code/TP-BTW2D1-32-E0TP-BTWS4D1-40-E0TP-BTW4D1-60-E0TP-BTW5D1-60-E0
Rated PowerW2x16W2x20W2x30W2x30W
LED Typ/QtySMD38252x1082x1322x1802x180
Luminous FluxLMtyp.3850-4150typ.4800-5200typ.7200-7800typ.7200-7800
Luminous EfficacyLM/Wtyp.120-130
Color IndexRaRa>80
Color TemperatureCCT(K)WW:3000K NW:4000K PW: 5000K CW:6000K
Lumen maintance%>80%
AC Input VoltageVAC100-277V
Power FactorPFPF>0.95
Flicker-free/Yes
Switching Cycle before   FailureTimes100000
Life Span Hours50000 hours
WarrantyYears5 years
Operation Temperature-15℃~+50℃
Storage Temperature-25℃~+55℃
