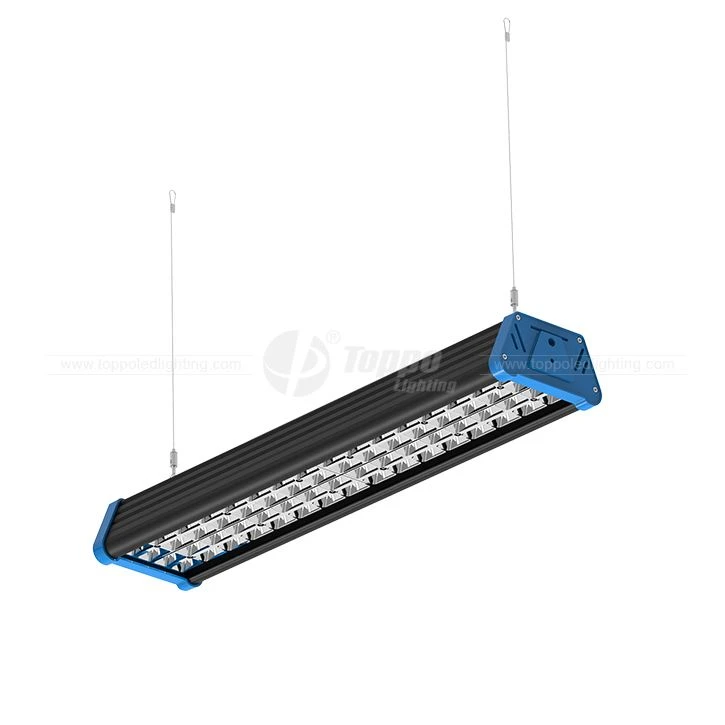

Asymmetric Honeycomb Linear Highbay Highly Energy Efficient - Up To 160 Lm/w

Asymmetric Honeycomb Linear Highbay Highly Energy Efficient - Up To 160 Lm/w

Rated Power: 100W, 120W, 150W, 200W Lumen Efficiency:140LM/W, 160LM/W Color:Ra>80 Beam Angle: 60x110 or 90x110 AC input: AC100-277V Power Factor:>0.95 Flicker Free: Y
Chat Now

Product Details

linear Highbay

linear Highbay
Product  Features

> Highly energy efficient - up to 160 lm/w

> Advanced cooling-fin structure for excellent heat dissipation

> Superior honeycomb-reflector-optic for low glare applications

> IP65 and IK10 for all industrial areas of application

> Driver and housing separated by spacers

> Newest generation of SMD2835 1W LED chips

> Double-rail mounting solution for driver and other components

> D-Mark tested for the use in paper production, wood processing etc.

> No UV or IR and completely mercury free

> L80/B10 @ 50.000h

> 5 years warranty




Options

> Drivers: Meanwell, Sosen, Shanpin

> Beam angle: 60°x110° or 90°x110°

> Controls and Dimming

·Zigbee wireless control ·1-10V Dimming

·Motion sensor ·Emergency

·DALI control ·Daylight sensor

> Lumen efficiency:

140Lm/w or 160Lm/w

> Installation: Suspended OR Surface mounted


Application

> Factories and warehouses

> High rooms and halls

> Exhibition- & showrooms



            Dimension


             Beam Angle



linear Highbay

linear Highbay

linear Highbay

linear Highbay

linear Highbay


linear Highbay


            Why choose us?

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.
