| Key Features |

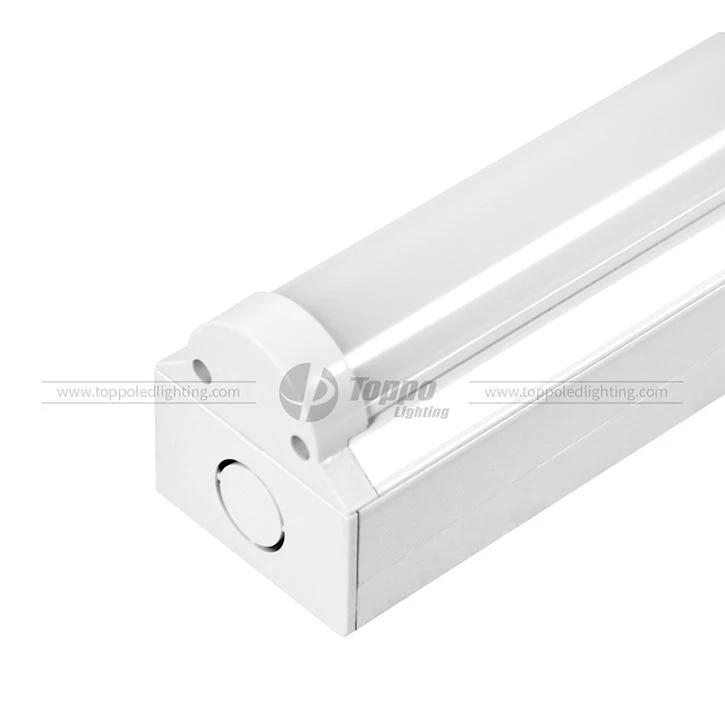

| ? Slim aluminum case thinner than normal batten ? The popping clip make the top head out for installation ? Higher Lumen output than the fluorescent batten ? Infinite connection |
| Construction Features |
| ? Smart popping clip for installation ? Similar normal fluorescent batten with higher Lumen ? Easy installation on top head cover |
| Application |
| ? Replace fluorescent batten ? Industrial Lighting: Factory, Warehouse, etc ? Commercial Lighting: Office, Supermarket, etc. ? Public Lighting: Residence, Hospitals, School, MTR station, Train station, Airport, etc |
| Options |
> Case finish: White or silver > Lighting Cover: Clear or Frosted > Warm white: WW/3000K > Neutral white: NW/4000K > Pure white: PW/5000K > Cool white: CW/6000K |
| Technical Features |
? Input Voltage: AC90-277V 50/60Hz ? Operation Voltage: DC36-42V ? Total harmonic distortion: THD<10% ? Power Factor: PF>0.95 ? Color Index: Ra>80 ? Lumen maintenance @6000h: >80% ? Switching cycle before failure: 100,000 ? IP Rating: IP20 ? Life Span: 50,000 hours ? Warranty: 5 years ? Operation Temperature: -15°C~+50°C ? Storage Temperature: -25°C~+55°C |
FAQ:
1.How to explain “Flux/luminous Flux “? Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light. 2.Can i have samples to test ? Yes,sure. Welcome to order samples for evaluation before the bulk order. |
