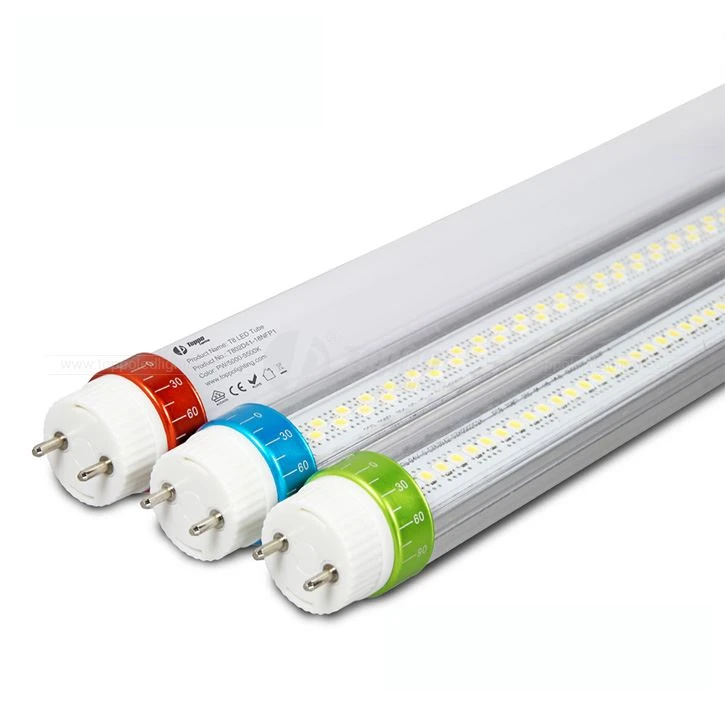

Aluminum Case T8 Tube Heat Dissipation Good

Aluminum Case T8 Tube Heat Dissipation Good

Toppo Lighting UL Aluminum and PC cover IP20 Toppo 10 years brand Factory price High quality Aluminum Case T8 Tube Heat Dissipation good with Aluminum case,heat emission holes and Thermal conductive adhesive and 105lm/w 125lm/w different lumen efficacy.

Product Details

UL Aluminum and PC cover IP20 Toppo 10 years brand Factory price High quality Aluminum Case T8 Tube Heat Dissipation good

UL Aluminum and PC cover IP20 Toppo 10 years brand Factory price High quality Aluminum Case T8 Tube Heat Dissipation good
UL Aluminum and PC cover IP20 Toppo 10 years brand Factory price High quality Aluminum Case T8 Tube Heat Dissipation good
Toppo AC100-277VUL DLC Frosted cover T8 Tube Isolating Driver Various rotatable end cap ring 5 years warrantyDissipation 5 years warranty
Key Features

1. 95-105lm/w or 120-130 LM/W by latest LED technology
2. High lumen SMD2835 as light source

Construction Features
Patent designed heatsink system
Various kind colorful cap ring
180 degree rotatable end cap with scale
Socket / Diameter: Rotatable G13 / D26mm
Housing Material: D aluminum shape + PC cover

Application

Industrial Lighting: Factory, Warehouse, etc
Commercial Lighting: Office, Supermarket,Hotel, Exhibition hall,etc.
Public Lighting: Residence, Library, Hospitals,School, MTR station, Train station, Bus station,Airport, etc.

Technical Features
Input Voltage: AC90-277V 50/60Hz
Operation Voltage: DC36-42V
Total harmonic distortion: THD: <10%
Power Factor: PF>0.95
Color Index: Ra>80
Lumen maintenance @6000h: >80%
Switching cycle before failure: 100,000
IP Rating: IP20
Life Span: 50,000 hours
Warranty: 5 years
Operation Temperature: -15°C~+50°C
Storage Temperature: -25°C~+55°C

Toppo AC100-277V UL T8 Tube PC Cover Isolating Bulit-in Driver G13 End Cap Ring 5 years warranty

UL Aluminum and PC cover IP20 Toppo 10 years brand Factory price High quality Aluminum Case T8 Tube Heat Dissipation good


UL Aluminum and PC cover IP20 Toppo 10 years brand Factory price High quality Aluminum Case T8 Tube Heat Dissipation good

UL AC100-277V Isolating Driver T8 Tube PC Cover Aluminm case and thermal conductivity adhesive for heat dissipation G13 End Cap Ring 5 years warranty
UL Aluminum and PC cover IP20 Toppo 10 years brand Factory price High quality Aluminum Case T8 Tube Heat Dissipation good
Why choose us?

Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.
