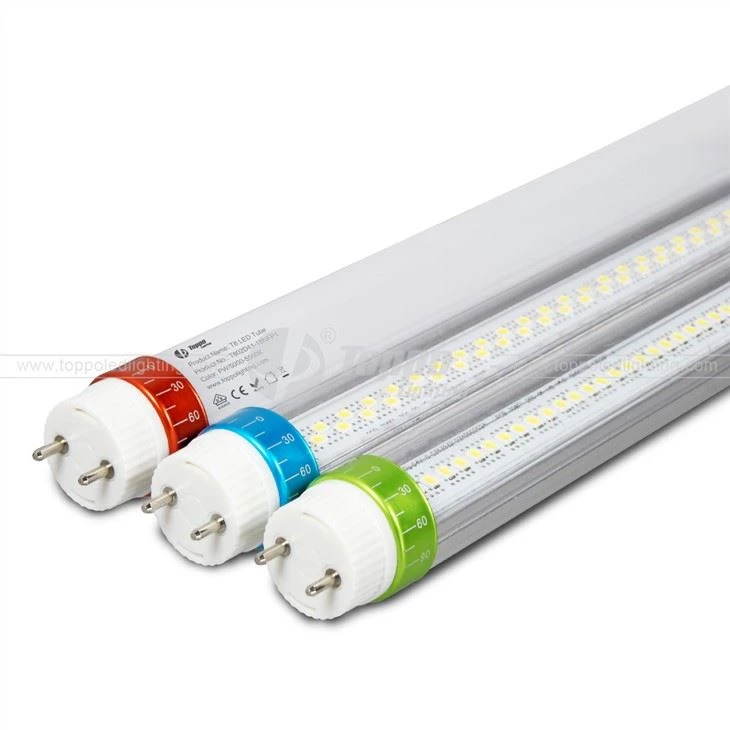

Aluminum and PC Cover IP20 T8 Tube AC90-277V 180 Degree Rotatable End Cap 5 Years Warranty

Aluminum and PC Cover IP20 T8 Tube AC90-277V 180 Degree Rotatable End Cap 5 Years Warranty

UL Aluminum and PC cover IP20 T8 Tube AC90-277V 180 degree Rotatable end cap 5 Years Warranty Tube Effective Heat Dissipation with heat emission hole on PCB and Thermal conductive adhesive and 105lm/w 125lm/w different lumen efficacy.

UL Aluminum and PC cover IP20 T8 Tube AC90-277V 180 degree Rotatable end cap 5 Years Warranty Tube Effective Heat Dissipation with heat holes and Thermal conductive adhesive

           Key Features

1. 95-105lm/w or 120-130 LM/W by latest LED technology
               2. High lumen SMD2835 as light source

Construction Features
Patent designed heatsink system
                Various kind colorful cap ring
                180 degree rotatable end cap with scale
                Socket / Diameter: Rotatable G13 / D26mm
                Housing Material: D aluminum shape + PC cover


Application

Industrial Lighting: Factory, Warehouse, etc
                Commercial Lighting: Office, Supermarket,Hotel, Exhibition hall,etc.
                Public Lighting: Residence, Library, Hospitals,School, MTR station, Train station, Bus station,Airport, etc.

Technical Features
Input Voltage: AC90-277V 50/60Hz
                Operation Voltage: DC36-42V
                Total harmonic distortion: THD: <10%
                Power Factor: PF>0.95
                Color Index: Ra>80
                Lumen maintenance @6000h: >80%
                Switching cycle before failure: 100,000
                IP Rating: IP20
                Life Span: 50,000 hours
                Warranty: 5 years
                Operation Temperature: -15°C~+50°C
                Storage Temperature: -25°C~+55°C



Why choose us?

Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.

Hot Tags: aluminum and pc cover ip20 t8 tube ac90-277v 180 degree rotatable end cap 5 years warranty, China, manufacturers, suppliers, factory, customized, price, newest, made in China
