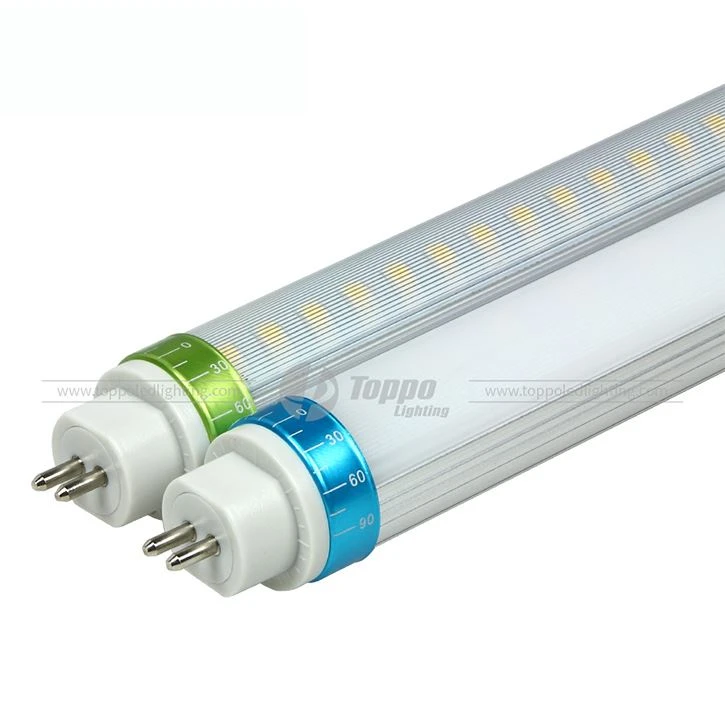

AC100-277V for Factory and Warehouse LED T8 Tube 20w

AC100-277V for Factory and Warehouse LED T8 Tube 20w

The LED tubes use the isolating LED driver and the integrated thermal fuse protact fuse protect electrical circuit and LED tube in the event of a power surge.The 50,000 hours life span and 5 years warranty make the led tubes high efficiency and robust luminaire.

Product Details

AC100-277V for factory and warehouse led t8 tube 20w
AC100-277V for factory and warehouse led t8 tube 20w
Key Features

? 140-150 LM/W by latest LED technology
? High lumen SMD2835 as light source

Construction Features
? Patent designed heatsink system
? Various kind colorful cap ring
? 180 degree rotatable end cap with scale
? Socket / Diameter: Rotatable G13 / D26mm
? Housing Material: D aluminum shape + PC cover

Application

? Industrial Lighting: Factory, Warehouse, etc
? Commercial Lighting: Office, Supermarket,Hotel, Exhibition hall,etc.
? Public Lighting: Residence, Library, Hospitals,School, MTR station, Train station, Bus station,Airport, etc.

Technical Features
? Input Voltage: AC90-277V 50/60Hz
? Operation Voltage: DC36-42V
? Total harmonic distortion: THD: <10%
? Power Factor: PF>0.95
? Color Index: Ra>80
? Lumen maintenance @6000h: >80%
? Switching cycle before failure: 100,000
? IP Rating: IP20
? Life Span: 50,000 hours
? Warranty: 5 years
? Operation Temperature: -15°C~+50°C
? Storage Temperature: -25°C~+55°C




AC100-277V for factory and warehouse led t8 tube 20w

AC100-277V for factory and warehouse led t8 tube 20w

AC100-277V for factory and warehouse led t8 tube 20w


AC100-277V for factory and warehouse led t8 tube 20w
Why choose us?

Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.
