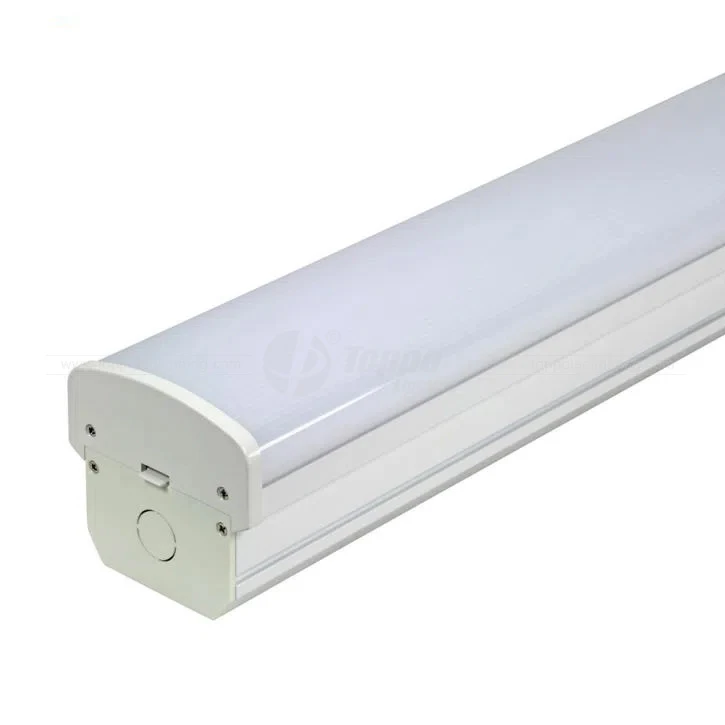

60% Energy Saving LED Single Batten Surface Mounted

60% Energy Saving LED Single Batten Surface Mounted

LED single batten have the various of functions on standard ON/OFF /simple set /DALI.and also have the high lumen efficacy.All of the these special points make the LED single batten lights hot selling. Due to the high lumen efficacy and the best replacement ofthe fluorscent twins batten fitting.The led single batten is very popular in european market.
Chat Now

Product Details

60% energy saving  LED single batten surface mounted60% energy saving  LED single batten surface mounted




60% energy saving  LED single batten surface mounted

            Why choose us?

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement? manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement? at competitive price with us. We can also offer you customized service.






1.What’s Smart Lighting ?

   Automated lighting control using sensors and /or scheduling switches.



2.What’s Watt ?

   The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.



3.How to explain “ZigBee“ ?

   A low -power ,low date rate, local area wireless network; ideal for lighting control.



4.How to explain “lumen output “ ?

   The total lumens emitted of a light source, system, or solution.






ItemSymbol2ft/60cm/22w4ft/120cm/32w5ft/150cm/540W5ft/150cm/55W6ft/180cm/65W
Product Code/TP-BTS2D1-22-E0TP-BTS4D1-32-E0TP-BTS5D1-40-E0TP-BTS5D1-55-E0TP-BTS6D1-65-E0
Rated PowerW1832405565
LED Typ/QtySMD3825132192240364442
Luminous FluxLMtyp.2650-2850typ.3850-4150typ.4800-5200typ6500-7000typ.7800-8400
Luminous EfficacyLM/Wtyp.120-130
Color IndexRaRa>80
Color TemperatureCCT(K)WW:3000K NW:4000K PW: 5000K CW:6000K
Lumen maintance%>80%
AC Input VoltageVAC100-277V
Power FactorPFPF>0.95
Flicker-free/Yes
Switching Cycle before   FailureTimes100000
Life Span Hours50000 hours
WarrantyYears5 years
Operation Temperature-15℃~+50℃
Storage Temperature-25℃~+55℃
