Overview

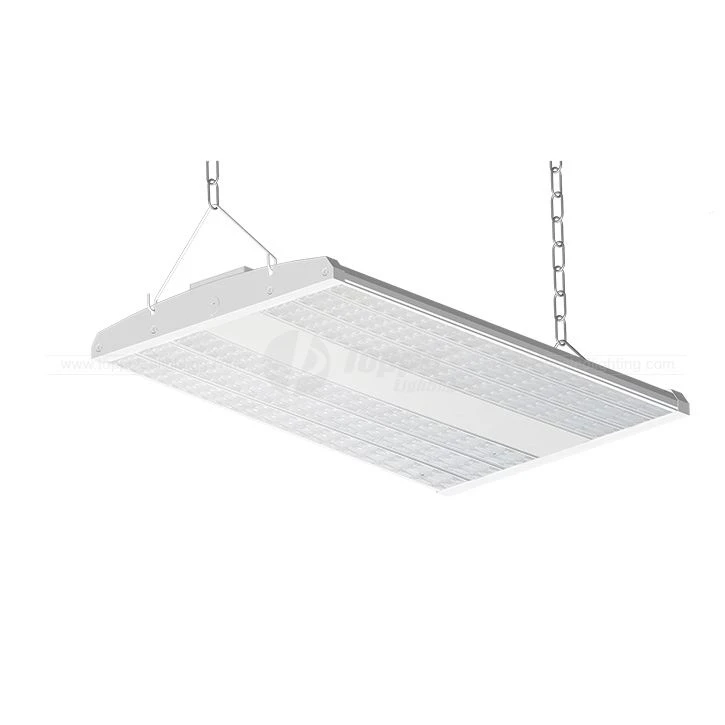

200w LED High Bay Light is a simple and elegant chandelier. The shape is simple but has a sense of line. It uses a bright LED light source with high brightness. It is formed by the overall high temperature stamping, and the product quality is good.
| Product Features |
· Rated power : 80-300W · LED driver: Meanwell / Philips · 140Lm/W and 50,000H life span · 30/60/90/DLR25 viewing angle · 200w LED High Bay Light has steel case as heat sink · Customs-made dimension |
| Options |
· Dimming: On-off OR 1-10V · LED driver: Meanwell or Philips · CCT: WW:3000K, NW:4000K PW:5000K ,CW:6000K · Installation : Chain /Cable Mount Rod Mount / Surface mount Pendant Mount |
| Application |
· Traditional lamp replacement · Factories / Warehouses · Supermarkets / schools · Car Parks / Gas stations · etc |
Dimension and Specification · Product Name(Unit: mm): 1x2ft(404,612,56.2), 2x2ft(564,612,56.2), 1x4ft(404,1184,56.2), 2x4ft(564,1184,56.2) · Light Distribution: Lens (30°, 60°, 90°), Dounle25°, 25°L/R · Technical/Electrical Characters (at TA=25℃) · Unt Power: 1x2ft(80W/100W), 2x2ft(150W/200W), 1x4ft(150W/200W), 2x4ft(300W) · Product Code TP-HBG12D-80N1-U0, TP-HBG12D10N1-U0, TP-HBG22D-15N1-U0, TP-HBG22D20N1-U0, TP-HBG14D-15N-U0, TP-HBG-14D-20N1-U0, TP-HBG-24D-30N1-U0 · LED Type/Qty: SMD2835 : 66X4, 66X6, 132X4, 132X6, 221X4, 260X4 · Lumen Efficacy Lm/w: typ.140 · Luminous Flux Frosted: typ.11200, typ.14000, typ.21000, typ.28000, typ.42000, · Color Index CRI(Ra): Ra>80 · Beam Angle Degree: 120 degree · Power Factor PF>0.95 · LED current mA: Constant 45mA · Input Voltage V: AC100~277V/50Hz · Working Voltage V: Constant DC36~42V · Housing material Alumminum+PC · Starting time S: <0.5S · Protection Class IP: IP20 · Temperatuer Operation:-15°C+50°C, Storage: -25°C+55°C · Lumen Maintenance 80% · Switch Cycle before Failure times: 100,000 · Life Span 50,000 hours · Warranty 5 years |
| Why choose us? |
200w LED High Bay Light is one of the leading alternatives to traditional tube lamps and LED fluorescent lamps. Manufacturers and suppliers in China are equipped with corresponding production plants. As a domestic company with a good reputation, we wholeheartedly provide customers with good after-sales service, including product design, installation, training, maintenance, etc. We provide customers with technology, reliable quality products and complete technical solutions. The pursuit of greater customer satisfaction is our service tenet. |
